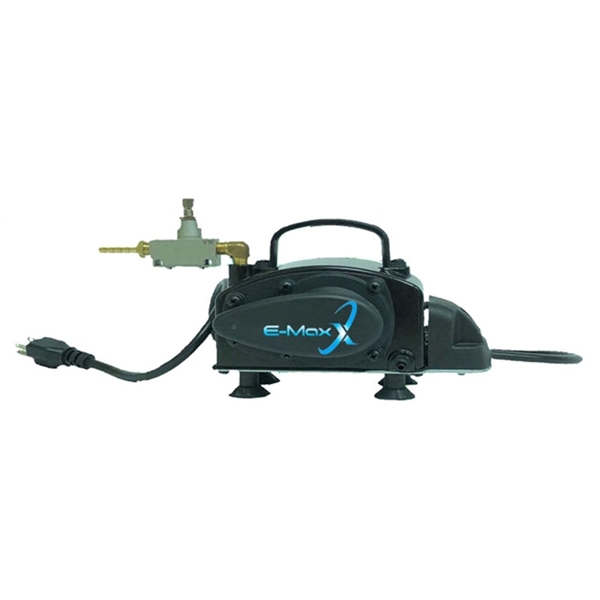

E-MAXX PUMP

The E-MaxX®, the next generation “Lite” pump,  uses high efficiency linear diaphragm technology to produce a quiet operation with minimal moving parts. An ideal choice for asbestos and lead air sampling.

Features:

• High Efficiency Linear Diaphragm Technology
• Adjustable flow rate range of 3 to 30 LPM
• On average 9 to 11 LPM with a PCM, or 5 to 7 LPM with a TEM
• Heavy Duty construction with aluminum used at both the suction and discharge port locations to alleviate downtime due to broken fittings
• Quiet operation with a sound level of 39 dB @ 3 feet and weighing only 4 lbs
• Designed, machined, assembled and tested in the USA
• Low Operation Costs
• Custom "Sleek" modern look
• Easy to carry with integrated handle and reinforced cord attachment
• Long Service Free Life
• 1 year warranty

Performance Data:

Head Configuration: Vacuum
Max Vacuum: 8" Hg
Max Ambient Air Temp: 104 *F
Motor Voltage/Frequency: 115V/60Hz
Power Draw: 0.4 Amps/48 Watts
Thermal Protector: Yes - Single trip
Weight: 4 lbs

The E-MaxX® was custom designed specifically for Environmental Monitoring Systems’ Sampling Applications. Competitive products were either built for completely different applications and/or designed for “General” market needs.  Every feature of the E-MaxX® has the end user’s needs in mind.
